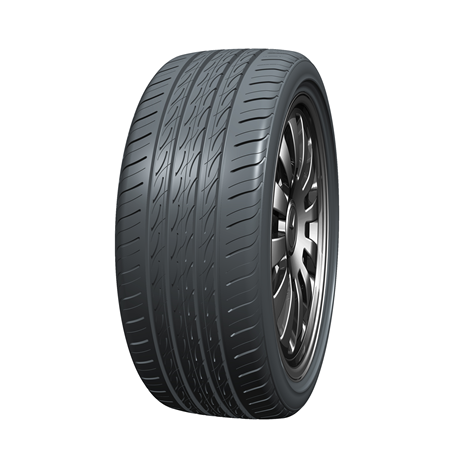

BH19
Densely distributed blocks efficiently offset noises made by air emission in the grooves.
Four longitudinal groove design to ensure good drainage performance on wet surface
Widen central Pattern Rib to ensure the handling at the time of intense driving.
Optimal design of pattern order with changing pitches efficiently decreases vibrate and Noise
Use the leading method FEA, Finite Element An
Four longitudinal groove design to ensure good drainage performance on wet surface
Widen central Pattern Rib to ensure the handling at the time of intense driving.
Optimal design of pattern order with changing pitches efficiently decreases vibrate and Noise
Use the leading method FEA, Finite Element An
Size | Service Index |
Standard Rim |
Section Width (mm) |
Overall Diameter (mm) |
Max. Load (kg) |
Max.Air Pressure (kpa) |
UTQG | ||
---|---|---|---|---|---|---|---|---|---|
225/35ZR20 | 90W | 8J | 230 | 666 | 600 | 340 | 420 | A | A |
245/30ZR22 | 92W | 8V2J | 248 | 707 | 630 | 340 | 420 | A | A |
255/35ZR20 | 97W | 9J | 260 | 686 | 730 | 340 | 420 | A | A |
265/35R22 | 102V | 9.5J | 271 | 745 | 850 | 340 | 420 | A | A |
275/40ZR20 | 106W | 9.5J | 278 | 728 | 950 | 340 | 420 | A | A |
305/40R22 | 114V | 11J | 313 | 803 | 1180 | 340 | 420 | A | A |
305/45R22 | 118V | 10J | 303 | 833 | 1320 | 340 | 420 | A | A |
